命名空间：netMarketing.automation.plc.Omron.FinsLibrary

功能：欧姆龙PLC基于Tcp通讯的Fins通讯类，支持全系列的欧龙PLC

功能详细说明：

FinsSocket支持的欧姆龙PLC包括CP系列, Nj系列, Nx系列的欧姆PLC。可以在监视模式或者运行模下读写PLC的内存。

这个类使用简单，已经经过多个项目检验过，勇哥推荐使用它！

常用函数列表：

/// 构造函数
public FinsSocket(string strServerIP = "192.168.250.1", int ServPort = 9600)
/// 写内存
public bool Write(_eMemory eMemory, ushort offSet, byte bitOffset, bool data)
public bool Write(_eMemory eMemory, ushort offSet, byte bitOffset, bool[] data)
public bool Write(_eMemory eMemory, ushort offset, short data)
public bool Write(_eMemory eMemory, ushort offset, short[] data)
public bool Write(_eMemory eMemory, ushort offset, int data)
public bool Write(_eMemory eMemory, ushort offset, int[] data)
public bool Write(_eMemory eMemory, ushort offset, long data)
public bool Write(_eMemory eMemory, ushort offset, long[] data)
public bool Write(_eMemory eMemory, ushort offset, float data)
public bool Write(_eMemory eMemory, ushort offset, float[] data)
public bool Write(_eMemory eMemory, ushort offset, double data)

/// 读内存
public bool Read(_eMemory eMemory, ushort OffSet, byte bit, ref bool reData)
public bool Read(_eMemory eMemory, ushort OffSet, byte bit, ref bool[] reData)
public bool Read(_eMemory eMemory, ushort OffSet, ref short reData)
public bool Read(_eMemory eMemory, ushort OffSet, ref short[] reData)
public bool Read(_eMemory eMemory, ushort OffSet, ref int reData)
public bool Read(_eMemory eMemory, ushort OffSet, ref int[] reData)
public bool Read(_eMemory eMemory, ushort OffSet, ref long reData)
public bool Read(_eMemory eMemory, ushort OffSet, ref long[] reData)
public bool Read(_eMemory eMemory, ushort OffSet, ref float reData)
public bool Read(_eMemory eMemory, ushort OffSet, ref float[] reData)
public bool Read(_eMemory eMemory, ushort OffSet, ref double reData)
public bool Read(_eMemory eMemory, ushort OffSet, ref double[] reData)
public bool Write(_eMemory eMemory, ushort offset, double[] data)
public bool ChangePLCMode(_ePLCMode eMode)

public bool WriteMultiple(_eMemory startMemory, ushort offset, short[] iMultiple)
public bool ReadMultiple(_eMemory startMemory, ushort offset, ref short[] iMultiple)

示例程序：

using netMarketing.automation.plc.Omron.FinsLibrary;
using System;
using System.Collections.Generic;
using System.ComponentModel;
using System.Data;
using System.Drawing;
using System.Linq;
using System.Text;
using System.Threading;
using System.Threading.Tasks;
using System.Windows.Forms;

namespace FinsLibraryTest
{
    public partial class Form1 : Form
    {
        public Form1()
        {
            InitializeComponent();
        }

        private void button1_Click(object sender, EventArgs e)
        {
            FinsSocket cp1h;
            cp1h = new FinsSocket();
            cp1h.IP = "192.168.250.1";//PLC IP地址
            cp1h.Port = 9600;       //PLC IP端口号

            float[] plcdataF = new float[1] { 0 };
            cp1h.Write(_eMemory.DM, 2000, 111.5f);
            Thread.Sleep(200);
            cp1h.Read(_eMemory.DM, 2000, ref plcdataF);

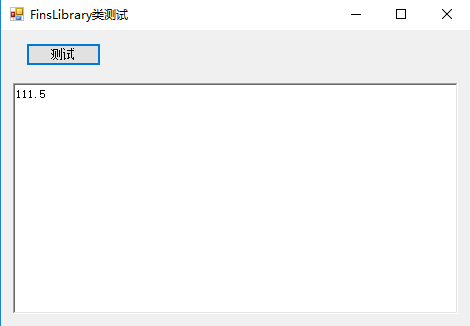

            richTextBox1.AppendText(plcdataF[0].ToString());


        }
    }
}

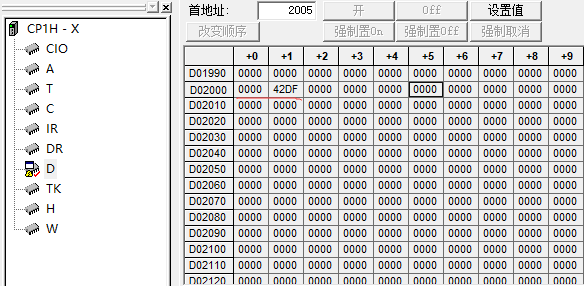

观察plc内存，可以看到结果是正确的。

---------------------

作者：hackpig
来源：www.skcircle.com
版权声明：本文为博主原创文章，转载请附上博文链接！
